All C++ files are written with C++11.
To create a graphic using run.sh, PyGraphviz and Python3.7 must be installed. This can be accomplished with pip install -r requirements.txt
The file containing the graph nodes and edges uses the following structure:
- The first line contains the vertices of the partite set X, separated by spaces.
- The second line contains the vertices of the partite set Y, separated by spaces.
- Up to |X|*|Y| lines may follow, each containing a single edge of the graph represented as two vertices separated by a space. The first vertex must be a vertex in X.
Use ./run.sh <input_file> where <input_file> has the structure described above.
To produce a matching without visuals, compile matchings.cxx and run with an input file redirected into the executable.
./run.sh examples/octopus
Maximum matching found:
{(x11, y7), (x10, y6), (x9, y5), (x8, y4), (x7, y11), (x6, y10), (x5, y9), (x4, y8), (x3, y3), (x2, y2), (x1, y1), (x0, y0)}

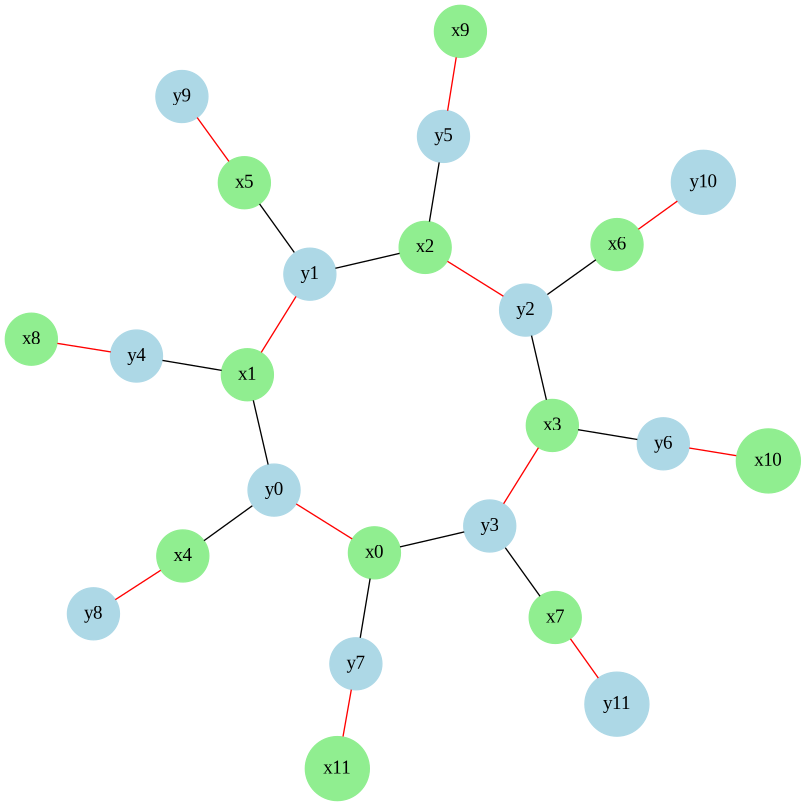

matching.png:
Runs matchings.cxx executable with the given argument, then runs visualize.py to produce the image (visuals do not work very well for disconnected graphs).
Implements Algorithm 3.2.1 from the textbook.
Uses Algorithm 3.2.1 to find M-augmenting paths in a biparite graph, starting with an empty matching M. For each M-augmenting path found, it flips the matching edges on the path in order to make it not an M-augmenting path. This step repeats until no more M-augmenting paths are found. M is then written to the standard output and to matching.txt.
Reads graph edges and nodes from graph_data.txt and matching edges from matching.txt. It then saves an image of the graph with colored matching to matching.png.
Produces input data for the complete bipartite graph with partite sets of size n and m. The data is written to the standard output. To use, redirect two integers into the executable.
