/tools/cmd/arpc

cd /

Note

asyncmachine-go is a declarative control flow library implementing AOP and Actor Model through a clock-based state machine.

aRPC REPL

am-dbg

arpc is a network-native REPL and CLI to manage one or many asyncmachines. Combined with am-dbg and a dedicated state machine, it can act as a debugging agent, showing results in the debugger, while accepting commands in the REPL. It's also very useful to modify live systems without restarting them, including filtered group operations.

Installation

  • Download a release binary
  • Install go install github.com/pancsta/asyncmachine-go/tools/cmd/arpc@latest
  • Run directly go run github.com/pancsta/asyncmachine-go/tools/cmd/arpc@latest

Note

asyncmachine-go is a declarative control flow library implementing AOP and Actor Model through a clock-based state machine.

Features

  • mutations: change the state of connected state machines.
  • checking: filter connected state machines and inspect them.
  • waiting: wait on multiple states or machine time of a single state machine.
  • CLI: all commands can also be called via CLI, eg in a bash script, including waiting methods.
  • readline shell: not just a simple REPL, supports inputrc keybindings.
  • aRPC: connect to any aRPC endpoint.
  • helpers: easily enable a REPL for existing state machines with a oneliner.
  • multi-client: connect to as many state machines as you want.
  • group mutations: perform mutations on large groups of state machines.
aRPC REPL for asyncmachine.dev

Usage:
  arpc ADDR [flags]
  arpc [command]

Examples:
- REPL from an addr
  $ arpc localhost:6452
- REPL from a file
  $ arpc -f mymach.addr
- CLI add states with args
  $ arpc localhost:6452 -- add mach1 Foo Bar \
    --arg name1 --val val1
- CLI add states with args to the first machine
    $ arpc localhost:6452 -- add . Foo Bar \
    --arg name1 --val val1
- CLI wait on 2 states to be active
  $ arpc localhost:6452 -- when mach1 Foo Bar
- CLI add states to a group of machines
  $ arpc localhost:6452 -- group-add -r ma.\* Foo Bar

Mutations
  add          Add states to a single machine
  group-add    Add states to a group of machines
  group-remove Remove states from a group of machines
  remove       Removed states from a single machine

Waiting
  when         Wait for active states of a single machine
  when-not     Wait for inactive states of a single machine
  when-time    Wait for a specific machine time of a single machine

Checking
  inspect      Inspect a single machine
  mach         Show states of a single machine
  time         Show the time of a single machine

REPL
  cheatsheet   Show cheatsheet
  exit         Exit the REPL
  help         Help about any command
  list         List connected machines
  script       Execute a REPL script from a file
  status       Show the connection status

Additional Commands:
  completion   Generate the autocompletion script for the specified shell

Flags:
  -d, --dir    Load *.addr files from a directory
  -f, --file   Load addresses from a file
  -h, --help   help for arpc

Use "arpc [command] --help" for more information about a command.
$ arpc list --help
List connected machines

Usage:
  arpc list [flags]

Examples:
list -a Foo -a Bar --mtime-min 1631

Flags:
  -a, --active stringArray         Filter by an active state (repeatable)
  -d, --disconn                    Show disconnected (default true)
  -f, --from int                   Start from this index
  -h, --help                       help for list
  -I, --id-partial string          Substring to match machine IDs
  -p, --id-prefix string           Prefix to match machine IDs
  -r, --id-regexp string           Regexp to match machine IDs
  -s, --id-suffix string           Suffix to match machine IDs
  -i, --inactive stringArray       Filter by an inactive state (repeatable)
  -l, --limit int                  Mutate up to N machines
  -T, --mtime-max uint             Max machine time, e.g. "1631616000"
  -t, --mtime-min uint             Min machine time, e.g. "1631616000"
  -m, --mtime-states stringArray   Take machine time only from these states (repeatable)
  -P, --parent string              Filter by parent ID
  -z, --states                     Print states (default true)
  -Z, --states-all                 Print all states (requires --states)
$ arpc add --help
Add states to a single machine

Usage:
  arpc add MACH STATES [flags]

Examples:
$ add mach1 Foo Bar \
  --arg name1 --val val1 \
  --arg name2 --val val2

Flags:
      --arg stringArray   Argument name (repeatable)
  -h, --help              help for add
      --val stringArray   Argument value (repeatable)
$ arpc when-time --help
Wait for a specific machine time of a single machine

Usage:
  arpc when-time MACH STATES TIMES [flags]

Examples:
when-time mach1 -s Foo -t 1000 -s Bar -t 2000

Flags:
  -h, --help                help for when-time
  -s, --state stringArray   State name (repeatable)
  -t, --time stringArray    Machine time (repeatable)

Steps to connect

  1. Enable a REPL per each state machine:

    import arpc "github.com/pancsta/asyncmachine-go/pkg/rpc"
// ...
// create an address file in ./tmp/MACH-ID.addr
arpc.MachRepl(mach, "", "tmp", nil)

  2. Run arpc -d tmp

  3. The REPL should start and connect to all addresses from the ./tmp dir

Demo

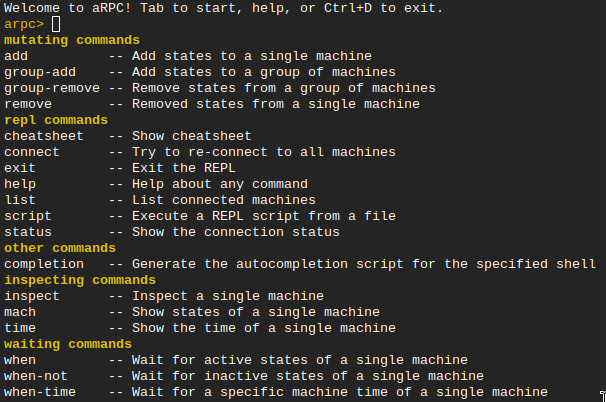

REPL

Credits

monorepo

Go back to the monorepo root to continue reading.
