Engine Comparisons

Overview

The following comparisons can be made between the reactive and legacy execution engines:

Policy execution

{% tabs %} {% tab title="Legacy engine behavior" %} The legacy execution engine requires execution scopes to indicate the level at which a policy will work:

  • REQUEST: The policy only works on request headers. It never accesses the request body.
  • REQUEST_CONTENT: The policy works at the request content level and can access the request body.
  • RESPONSE: The policy only works on response headers. It never accesses the response body.
  • RESPONSE_CONTENT: The policy works at the response content level and can access the response body.

Execution of all policies working on the body content are postponed until the policies working on headers have been executed. This leads to an execution order that is often different than the one originally designed.

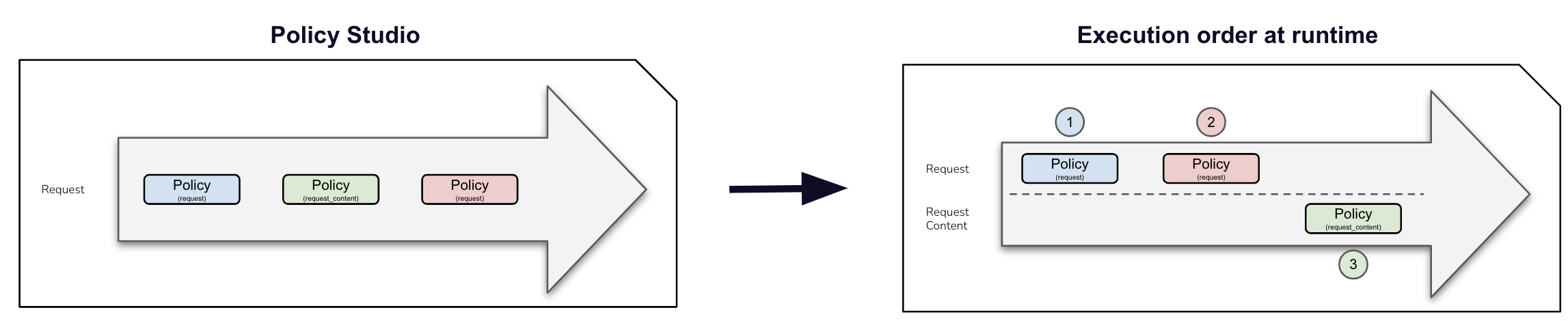

Legacy engine execution order

{% endtab %}

{% tab title="Reactive engine improvements" %} The reactive execution engine does not consider the REQUEST_CONTENT and RESPONSE_CONTENT phases. All policies are executed in the exact order of the design, regardless of whether they work on the content or not.

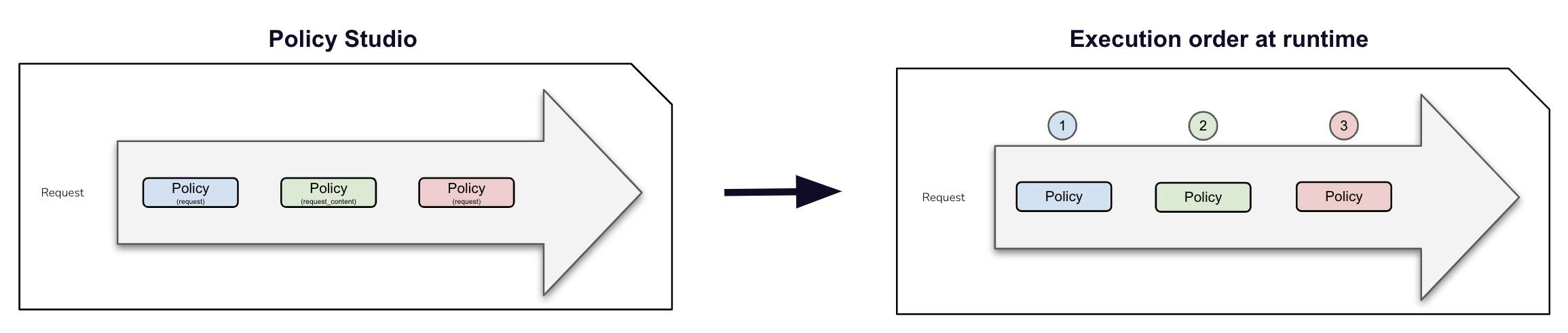

Reactive engine execution order

{% endtab %} {% endtabs %}

{% hint style="info" %} Migration considerations

If you have designed your APIs assuming the policy ordering imposed by the legacy execution engine, you must review your existing flows when enabling compatibility mode or migrating to a v4 API definition. There may be policy execution behavior changes due to the changes in execution order at runtime. You can use the debug mode to test the new behavior and adapt your APIs to ensure they are safely redeployed. {% endhint %}

Plan selection

For both execution engines, the plan selection workflow parses all published plans in the following order: JWT, OAuth2, API Key, Keyless. Each plan type has specific rules.

JWT
  • Retrieve JWT from Authorization Header or query parameters
  • Ignore empty Authorization Header or any type other than Bearer
  • While it was previously ignored, an empty Bearer token is now considered invalid
OAuth2
  • Retrieve OAuth2 from Authorization Header or query parameters
  • Ignore empty Authorization Header or any type other than Bearer
  • While it was previously ignored, an empty Bearer token is now considered invalid
API Key
  • Retrieve the API key from the request header or query parameters (default header: X-Gravitee-Api-Key and default query parameter: api-key)
  • While it was previously ignored, an empty API key is now considered invalid
Keyless
  • Will ignore any type of security (API key, Bearer token, etc.)
  • If another plan has detected a security token, valid or invalid, all flows assigned to the Keyless plan will be ignored. Therefore, if an API has multiple plans of different types and the incoming request contains a token or an API key that does not match any of the existing plans, then the Keyless plan will not be activated and the user will receive a generic 401 response without any details.

The parsed plan is selected for execution if all the following conditions are met:

  • The request contains a token corresponding to the plan type (e.g., X-Gravitee-Api-Key header for API Key plans)
  • The plan condition rule is valid or not set
  • There is an active subscription matching the incoming request

{% hint style="warning" %} There is an exception for OAuth2 plans executed on the legacy engine as detailed in the next section. {% endhint %}

{% tabs %} {% tab title="Legacy engine behavior" %} With the legacy execution engine, the OAuth2 plan is selected even if the incoming request does not match a subscription.

No JWT token introspection is done during OAuth2 plan selection.

Multiple OAuth2 plans can lead to the selection of the wrong plan. {% endtab %}

{% tab title="Reactive engine improvements" %} When using the reactive execution engine, the OAuth2 plan is not selected if the incoming request does not match a subscription.

During OAuth2 plan selection, a token introspection is completed to retrieve the client_id, which allows searching for a subscription.

If there are performance concerns, a cache system is available to avoid completing the same token introspection multiple times. Where possible, it is recommended to use selection rules if there are multiple OAuth2 plans to avoid any unnecessary token introspection. {% endtab %} {% endtabs %}

Flow

{% hint style="info" %} Flows can be scoped to different execution contexts:

  • plan: A flow scoped to a plan only executes for subscribers
  • API: A flow scoped to an API executes for all consumers of that API
  • platform: A flow scoped to the platform executes for all API consumers using the Gateway {% endhint %}

Flow conditions

{% tabs %} {% tab title="Legacy engine behavior" %} When using the legacy execution engine, a condition can be defined once for the whole flow, but the condition is evaluated before executing each phase of the flow (REQUEST and RESPONSE phases). This could lead to a partial flow execution.

For example, a condition could be defined based on a request header that is removed during the REQUEST phase (e.g., the user does not want the request header to be transmitted to the backend). The condition is then re-evaluated and the RESPONSE phase is skipped completely, as shown below:

Partial flow execution example

{% endtab %}

{% tab title="Reactive engine improvements" %} When using the reactive execution engine, the flow condition will be applied once for the whole flow. If the condition is evaluated as true, then both the REQUEST and the RESPONSE phases will be executed, as shown below:

Reactive execution engine flow condition improvements

{% endtab %} {% endtabs %}

{% hint style="info" %} Migration considerations

If you expect the RESPONSE phase to be skipped in the scenario described above, you must refactor your flows since both the REQUEST and RESPONSE phases will be executed as long as the condition is evaluated as true.

To mimic the legacy engine behavior with the reactive engine, you can remove the flow condition from the flow configuration and add it directly to the policies themselves. {% endhint %}

Flow interruption

{% tabs %} {% tab title="Legacy engine behavior" %} When using the legacy execution engine, if a policy fails, the execution flow is interrupted and the response is returned to the client application. As a result, the platform flow response is also skipped. This leads to unexpected behavior, especially when POST actions are expected, e.g., in a custom metrics reporter. {% endtab %}

{% tab title="Reactive engine improvements" %} The reactive execution engine ensures that platform flows are always executed, except in the case of an irrecoverable error. This allows the API to fail without skipping important steps in the flow occurring at a higher level. {% endtab %} {% endtabs %}

Logging

{% tabs %} {% tab title="Legacy engine behavior" %} The legacy execution engine presents logging issues:

  • A 502 status code normally indicates that the server has responded with a 502 status code, but 502 is also returned for connection failures
  • Consumer response headers are not displayed clearly

Sample 502 log with the legacy execution engine

{% endtab %}

{% tab title="Reactive engine improvements" %} The reactive execution engine implements the following improvements:

  • When a connectivity error occurs during a connection attempt to the backend endpoint, the Gateway response displays an HTTP status code 0 and no headers. This clarifies that no response has been received from the backend endpoint due to the connectivity error.
  • Consumer response headers are displayed more clearly

Sample 502 log with the reactive execution engine

{% endtab %} {% endtabs %}

Expression Language

EL condition evaluation

{% tabs %} {% tab title="Legacy engine behavior" %} The Gateway returns a 500 error with an obscure message when the legacy execution engine fails to evaluate a valid Gravitee Expression Language (EL) expression because it is trying to access missing data.

Sample EL condition evaluation error with legacy engine

{% endtab %}

{% tab title="Reactive engine improvements" %} The reactive execution engine executes a policy (or flow) when a valid EL expression evaluates as true. Otherwise, the policy is skipped because the EL expression evaluates as false.

Sample EL condition skipping behavior with reactive engine

The reactive execution engine ensures EL expressions that attempt to access missing data are evaluated as false. For example, {#request.headers['X-Test'][0] == 'something'} will skip execution even if the request header X-Test is not specified.

The execution will fail and throw an error if the provided EL expression cannot be parsed, e.g., if it is syntactically invalid. The error message details why the EL expression cannot be parsed.

Sample EL condition error with reactive engine

{% endtab %} {% endtabs %}

EL expression parsing

{% tabs %} {% tab title="Legacy engine behavior" %} The legacy execution engine parses an EL expression each time it is evaluated. {% endtab %}

{% tab title="Reactive engine improvements" %} The reactive execution engine employs a new caching mechanism that allows the Gateway to cache the parsed EL expression for reuse, thereby improving performance. {% endtab %} {% endtabs %}

EL body expressions

{% tabs %} {% tab title="Legacy engine behavior" %} The legacy execution engine limits use of EL expressions such as {#request.content == 'something'} to policies working at the REQUEST_CONTENT or RESPONSE_CONTENT phases (e.g., Assign Metrics, Assign Content, Request Validation, etc.).

However, defining a policy or a flow condition based on the request or response body is not supported. {% endtab %}

{% tab title="Reactive engine improvements" %} Using the reactive execution engine, it is possible to define a condition based on the request or response body. For example, you can create a condition such as {#request.content == 'something'}.

Depending on the expected content type, it is also possible to define a condition based on JSON such as {#request.jsonContent.foo.bar == 'something'} where the request body looks like this:

{
  "foo": {
      "bar": "something"
  }
}

The same applies to XML content using {#request.xmlContent.foo.bar == 'something'}:

<foo>
  <bar>something</bar>
</foo>

{% endtab %} {% endtabs %}

{% hint style="warning" %} Migration considerations

Use this feature with caution. EL body-based expressions are resource-heavy and should be avoided when performance is a concern. Working with request or response content can significantly degrade performance and consumes substantially more memory on the Gateway. {% endhint %}

Bad requests

{% tabs %} {% tab title="Legacy engine behavior" %} A Gateway running on the legacy execution engine handles a bad request by responding with a Connection: close response header and effectively closing the connection. The same behavior is in place for 404 "not found" errors and could occur repeatedly if the client application resends requests with invalid data.

Creating a connection is costly for the Gateway and sending invalid data can dramatically impact performance, especially if the consumer sends a high volume of bad requests. {% endtab %}

{% tab title="Reactive engine improvements" %} The reactive execution engine does not close the connection if the bad request is due to a client-side error. The engine will only close the connection if there is a server-side error. {% endtab %} {% endtabs %}

Origin validation

{% tabs %} {% tab title="Legacy engine behavior" %} When using the legacy execution engine, you can configure Cross-Origin Resource Sharing (CORS) to allow a specific subset of origins. Regardless of the actual configuration, the Gateway properly validates the origin but returns Access-Control-Allowed-Origin: * in the response header. {% endtab %}

{% tab title="Reactive engine improvements" %} When using the reactive execution engine, the allowed origin(s) you specify is returned instead of *. For example, in the configuration shown below, Access-Control-Allowed-Origin: https://test.gravitee.io.

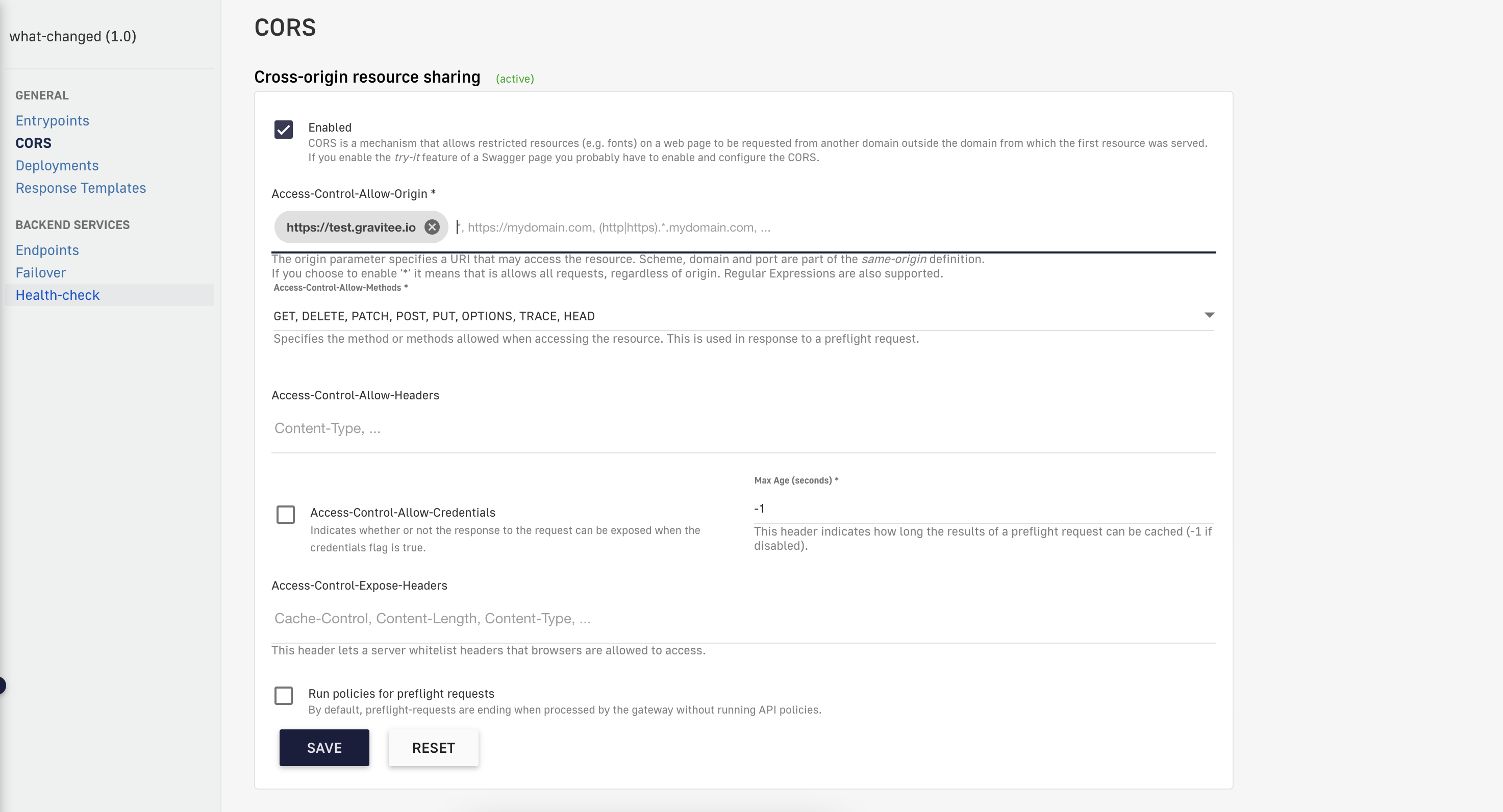

Sample CORS configuration

{% endtab %} {% endtabs %}

Timeout management

{% tabs %} {% tab title="Legacy engine behavior" %} When using the legacy execution engine, if a timeout is configured (http.requestTimeout) and triggered due to a request that is too slow or a policy that is taking too much time to execute, the API platform flows are always skipped and a 504 status is sent as a response to the client. {% endtab %}

{% tab title="Reactive engine improvements" %} A timeout can now be triggered at two places in the chain:

  • The flow can be interrupted between the beginning of a Gateway API's request phase and the end of the response phase. In this case, a platform response flow will still be executed.
  • The flow can be interrupted during the platform response flow when the overall request time is too long. This results in a 504 response and the platform response flow is interrupted.

Two properties are available to configure these triggers:

  • http.requestTimeout: The duration used to configure the timeout of the request
  • http.requestTimeoutGraceDelay: Additional time used to give the platform response flow a chance to execute

The timeout value is calculated from the following two properties:

  • Timeout = Max(http.requestTimeoutGraceDelay, http.requestTimeout - apiElapsedTime)
  • With apiElapsedTime = System.currentTimeMillis() - request().timestamp()

{% hint style="info" %} Timeout configuration

The reactive execution engine interprets timeout values less than or equal to 0 as "no timeout" (same as the legacy engine).

If you configure the timeout with a positive value, then it will act normally.

If no configuration is provided, a default configuration is set to default to 30000 ms timeout. {% endhint %} {% endtab %} {% endtabs %}

Example

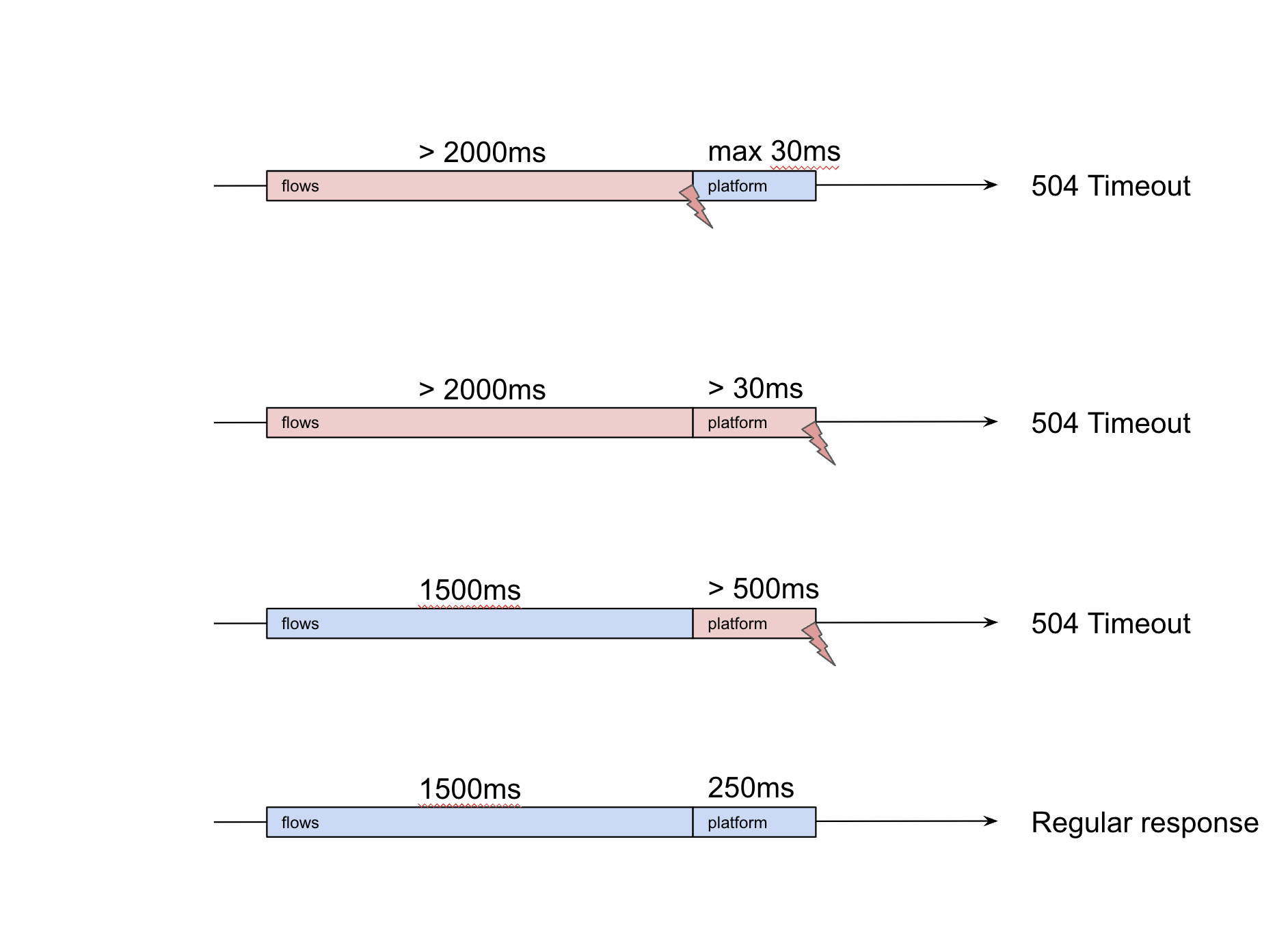

The example below shows timelines indicating when a timeout should occur depending on the duration of the API flow and the response platform flows. Assumptions:

  • There is no timeout defined for the backend in the API’s endpoint configuration (real timeout values should be shorter than http.requestTimeout and should interrupt the flow at the invoker level)
  • http.requestTimeout=2000ms and http.requestTimeoutGraceDelay=30ms

Reactive engine timeout management
